Import Instagram Data to Google Sheets

premium

In this guide, we’ll walk through how to pull Instagram Insights data data directly into Google Sheets, using the API Connector add-on for Sheets.

To use the Instagram Insights API, you must have an Instagram Business account that is connected to a Facebook Page, and you must be an admin of that Facebook page. If you need help, this guide provides information on converting your personal Instagram account to a business account.

Contents

Before You Begin

Click here to install the API Connector add-on from the Google Marketplace.

Part 1: Connect to the Instagram Insights API

If you haven’t connected to the Instagram Insights API before, you’ll first need to initiate the connection.

  1. Open up Google Sheets and click Extensions > API Connector > Manage Connections.
  2. In the list of available connections, find Instagram Insights and click Connect.
    instagram-img2
  3. You will be directed to Facebook and asked to choose which Instagram accounts and Facebook Pages you’d like to use with API Connector. If you are an admin of multiple accounts, make sure to choose the Instagram account and Facebook page that you’ve previously linked together. Click Done.
    instagram-img3
  4. You’ll then be returned to your Google Sheet, and can verify that your Instagram Insights connection is active in the Connections screen.

Part 2: Create Your Instagram API Request URL

For our first request, we’ll get some basic information about your Instagram account.

  • API root: https://graph.facebook.com
  • Endpoint: /me/accounts

Putting it all together, we get the full API Request URL.

https://graph.facebook.com/me/accounts

Part 3: Pull Instagram API Data into Sheets

We can now import our first set of data.

  1. Back in the Create Request interface, enter the Request URL we just created above.
    instagram-img1
  2. Under OAuth, choose Instagram Insights from the dropdown menu. You should see a badge saying “Connected” if you’ve already connected as described in Part 1.
    instagram-connected
  3. You don’t need any headers so just leave that section blank.
  4. Create a new tab and click Set current to use that tab as your data destination.
  5. Name your request and click Run. A moment later you’ll see some information about your Instagram account populate your sheet. Pay special attention to the value located in the data.id field as you’ll need it in the next request.
    instagram-data-id

  6. Now let’s use that ID to get your Instagram Business account ID, because we’ll need that for all requests to the /insights endpoint, which is what we’re here for. In a new request, create an API URL like this, substituting in your own data ID.
    https://graph.facebook.com/YOUR_DATA_ID?fields=instagram_business_account
  7. Just as you did before, choose Instagram Insights from the Authentication menu (you’ll need to do this for all requests to the Instagram API) and click Run.
  8. You should now see your Instagram Business account ID printed into the sheet. Keep this handy, we’ll use this ID to get all our Instagram stats!
    instagram-business-id

Part 4: Example API URLs

The Instagram API provides a lot of different endpoints and functionality. I’ve tried to give a lot of examples and summarize the most useful endpoints below, but for more complete information, please check the full Instagram Insights documentation here.

In addition, you can use API Connector’s API Library to easily pull up most of these sample URLs (just search for “Instagram” while in the extension).

Account/User Metrics (metrics about the account)

  • Key metrics about an account (id, total followers, following, etc)
    https://graph.facebook.com/v13.0/YOUR_BUSINESS_ACCOUNT_ID?fields=id,ig_id,followers_count,follows_count,media_count,name,profile_picture_url,username
    instagram-img10
  • Engagement metrics by day for a date range (the “since” and “until” parameters contain start and end dates as UNIX timestamps, read more about that in the section on handling dates. )
    https://graph.facebook.com/v13.0/YOUR_BUSINESS_ACCOUNT_ID/insights?metric=reach,impressions,profile_views,website_clicks,phone_call_clicks,text_message_clicks,get_directions_clicks,email_contacts&period=day&since=1645574400&until=1646438400
    By default, the request above will put each metric into separate rows. To convert them into column headers, switch to the grid report style and use the JMESPath technique described here, like this: { reach:data[?name=='reach']|[0], impressions:data[?name=='impressions']|[0], profile_views:data[?name=='profile_views']|[0], website_clicks:data[?name==' website_clicks']|[0], phone_call_clicks:data[?name=='phone_call_clicks']|[0], text_message_clicks:data[?name=='text_message_clicks']|[0], get_directions_clicks:data[?name=='get_directions_clicks']|[0], email_contacts:data[?name=='email_contacts']|[0] }

  • Count of new followers (query structure is just like that of engagement metrics, but follower count metrics can only be queried for the last 30 days)
    https://graph.facebook.com/v13.0/YOUR_BUSINESS_ACCOUNT_ID/insights?metric=follower_count&period=day
  • A breakdown of your followers by age and gender
    https://graph.facebook.com/v13.0/YOUR_BUSINESS_ACCOUNT_ID/insights?metric=audience_gender_age&period=lifetime

Media Metrics (metrics for content)

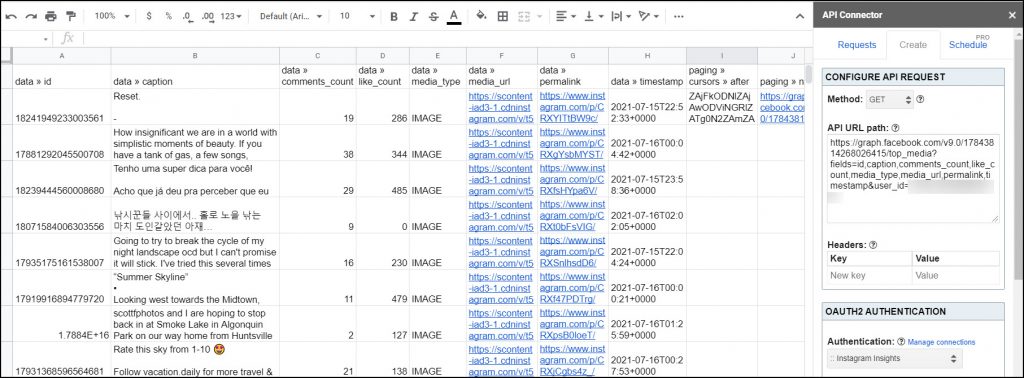

  • List posts with comments, likes, and other data. If you need more than 100 records, please check the section on pagination.
https://graph.facebook.com/v13.0/YOUR_BUSINESS_ACCOUNT_ID/media?fields=caption,comments_count,id,ig_id,is_comment_enabled,like_count,media_product_type,media_type,media_url,owner,permalink,shortcode,thumbnail_url,timestamp,username,video_title&limit=100
Just leave off the fields you don’t need, and click Edit Fields to set your field order.
  • List posts including engagement metrics. Nearly the same as above, but listed separately as adding the insights.metric expansion will limit the response to data from only after the Instagram account was converted to a Business account.
https://graph.facebook.com/v13.0/YOUR_BUSINESS_ACCOUNT_ID/media?fields=caption,comments_count,id,ig_id,is_comment_enabled,like_count,media_product_type,media_type,media_url,owner,permalink,shortcode,thumbnail_url,timestamp,username,video_title,insights.metric(reach,impressions,engagement)&limit=100
  • List posts that tagged you.
https://graph.facebook.com/v13.0/YOUR_BUSINESS_ACCOUNT_ID/tags?fields=id,username

Part 5: Handle Dates

The Instagram Insights API requires dates to be entered as UNIX timestamps. In Sheets, you can convert a regular date in cell A1 to a UNIX timestamp with the formula =(A1-DATE(1970,1,1))*86400.

Here is one way to make your requests run off a dynamically updating date range:

  • Create a tab called Inputs
  • In cells A1 and A2, add dynamic date formulas, e.g. =today()-7 and =today()-1
  • In cells B1 and B2, convert those dates to UNIX with =(A1-DATE(1970,1,1))*86400 and =(A2-DATE(1970,1,1))*86400
  • Now back in the API Connector sidebar, reference those timestamp cells in your request URL like this: https://graph.facebook.com/v12.0/111111111111/insights?metric=reach,impressions,profile_views&period=day&since=+++Inputs!B1+++&until=+++Inputs!B2+++

Now every time the date changes, your URL will update automatically.

Part 6: Handle Pagination

  1. By default Facebook’s graph API, which includes Instagram, limits the number of results in a single response (usually to 25 records) as described here. To get more records, you can add the ‘limit’ parameter (e.g. &limit=100) to the end of your URL.
  2. If you still have more records after that, the URL for the next page of results is printed into the paging.next field.
    instagram-img12
  3. In API Connector you can loop through these pages automatically using pagination handling, like this:
    • API URL: enter your request URL, including limit=100
    • Pagination type: next page URL
    • Field name: paging.next
    • Run until: choose when to stop fetching data
      instagram-pagination-nextpageurl

Part 7: API Documentation & Resources

There are two very useful endpoints for Instagram analytics: /{ig-media-id} (metrics on a media object) and /{ig-user-id} (metrics on an Instagram Business or Creator Account). Each endpoint has different available metrics, as described here:

Available Media Metrics:

Available User/Account Metrics:

Unofficial APIs

The article above discusses Instagram’s official API, which has quite a few limits and isn’t the easiest to work with. Therefore you may also want to check out some of the unofficial APIs listed here: https://rapidapi.com/search/instagram. They have their own limits, and in the long run may be less reliable than using the official API, but they simplify the connection process and provide some data points that Instagram doesn’t provide itself.
